    Process technology
    Plant-based milk alternatives
    You can easily send a request for a non-binding quotation in our Krones.shop.
    Request now

    Oat milk production: Industrial process technologies for plant-based milk alternatives

    Milk alternatives made from soy, almond or oats have long since established themselves on our supermarket shelves. The reasons for their major popularity are varied and range from health aspects to an intrinsic motivation to achieve more sustainable nutrition.

    Also the world of milk alternatives itself is rich in variety: Grain types such as oat or rice suit also for production as nuts (for example almond or coconut) or legumes such as soy or peas. Each group of raw materials has certain properties and details which need to be taken into account during production.

    Krones has focused particularly on the production of oat drinks and offers three different process variants in this context. We would like to present these in a little more detail below. You can read even more about the technical details and the differences between the various options in the brochure linked.

    00 - Article Item 28225
    Brochure Plant-based milk alternatives
    1.51 MB, .pdf

    Variant 1: production from finished oat base

    Raw-material base: ready-to-use oat base

    Overview of the most important process steps:

    Suitable for: beverage manufacturers who already own a syrup room and would initially like to test the production of grain-based drinks for themselves and their brand

    • Existing equipment can be used (minor extensions may be required)
    • Swift market entry possible
    • Preservation of flexibility as it is possible to react relatively quickly to changing market requirements
    • But: relatively high production costs as the basic material is purchased ready-to-use

    Variant 2: production from oatmeal

    Raw-material base: ready-to-use oatmeal

    Overview of the most important process steps:

    Suitable for: producers who wish to produce medium-sized quantities of oat drink quickly and reliably

    • Swift market entry possible
    • Allows individual recipes as the product characteristics can be directly controlled in the hydrolysis process. Recipe can be developed independently from the raw material supplier
    • More cost efficient than variant 1 in the long term as oatmeal can be purchased cheaper


    Variant 3: production from whole oat grains or flakes

    Raw-material base: whole oat grains or flakes

    Overview of the most important process steps:

    Suitable for: producers who attach great value to high product quality and a sustainable overall concept (low energy requirement for greater production quantities)

    • Allows individual recipes as the product characteristics can be directly controlled in the hydrolysis process. Recipe can be developed independently from the raw material supplier
    • Use of brewery technology makes it possible to control and adapt the hydrolysis process even more effectively
    • Energy-efficient variant: focus on a holistic energy concept
    • In the long term, the least expensive of the three variants as regards production costs

    In Detail: Oat drink production using whole oat grains or flakes

    Sample representation of an oat drink line

    06 - Image with Hotspots 28231

    1. Krones Hydronomic water treatment system

    In addition to select, high-quality raw materials, the second major ingredient that is important for plant-based milk alternatives is water. And here you can benefit from our turnkey abilities – as Krones is the only supplier in the world who can also include knowledge about ideally treated water, as well as the corresponding line technology. The Hydronomic is designed exactly with a view to plant-based milk alternatives and makes it possible to achieve a standard water quality with a low TDS content and without taste impairments.

    2. Intensive mixing of oatmeal and water

    Before adding enzymes (hydrolysis), an optimised mixing of oatmeal and water guarantees a homogeneous suspension. This procedure is performed in a pre-masher. Its proven technology permits dust and lump-free mixing up to a ratio of 1:2.

    Method of operation: expansion as the driving force

    • The meal is fed from above and the water then added horizontally in a pocket.
    • Swirl vanes at the nozzle outlet of the pocket increase the turbulence in the mixing zone.
    • The reduced diameter after the pocket increases the flowing speed and thus causes the media to expand.
    • This guarantees that the solids are distributed optimally in the liquid medium.
    • These measures force an intimate contact between the finest particles and the water.
    00 - Article Item 28241

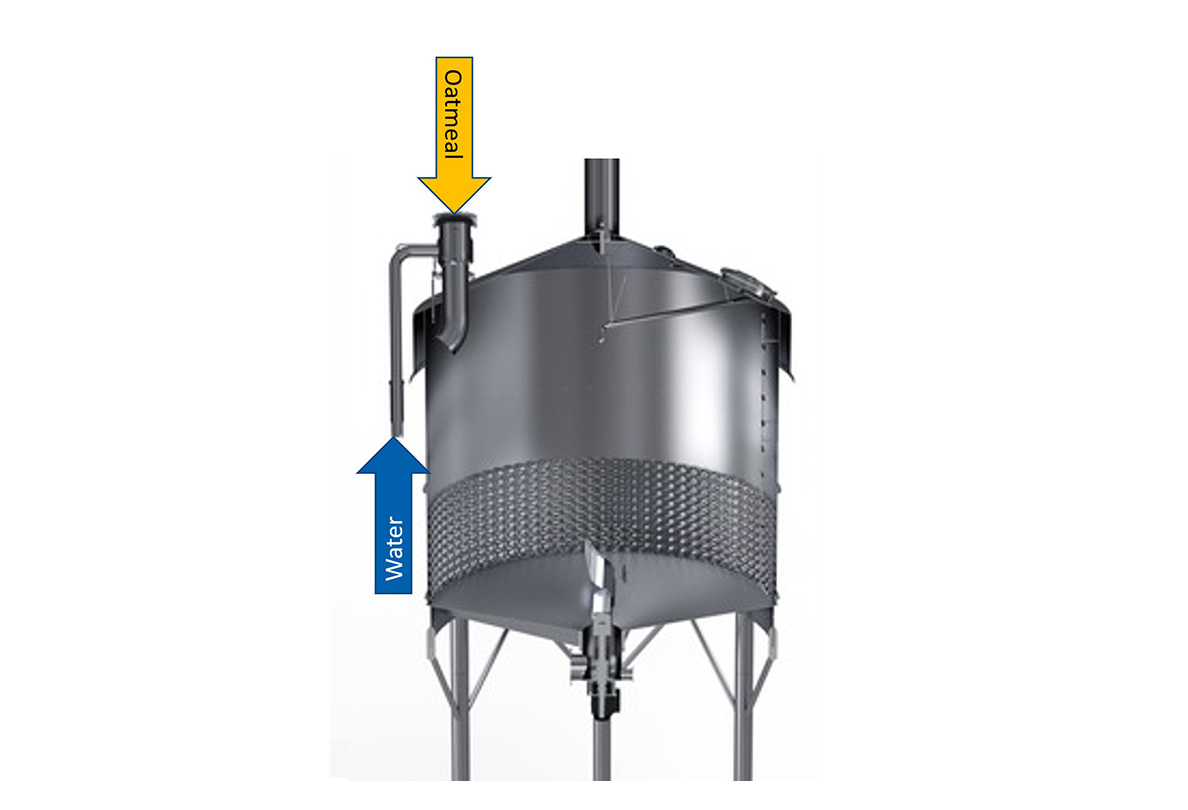

    The pre-masher is installed above the hydrolysis tank.

    3. Hydrolysis: key process for the final product quality and yield

    • Particulate starch is made up of alternating hard and soft layers.
    • The structure and thickness of the individual layers depends on the growth conditions and influences the gelatinisation temperature of the starch.
    • The yield, sweetness and mouthfeel of the finished product depend on the:
    • gelatinisation temperature of the raw material
    • Liquefaction of the starch through the effect of α-amylases at temperatures between 80 and 85 °C
    • Saccharification with β amylases and glucosidases, that separate maltose from the end of the dextrine chain and have an optimal effect at approx. 60 to 65 °C
    • The selection of the suitable enzyme (depending on the supplier) is crucial for the balance of the end product as regards sweetness, mouthfeel and yield.
    • Preliminary trials are required to define the required end product.

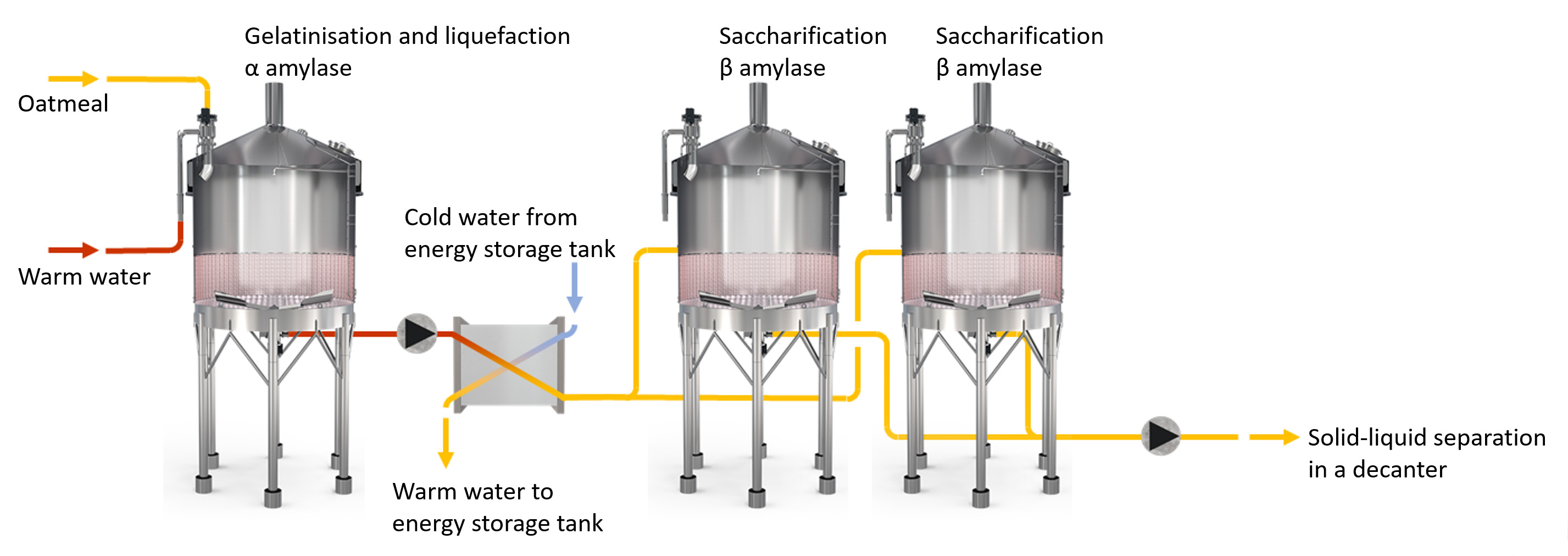

    Line concept for continuous hydrolysis - Sequence and duration of a sample process

    • Filling and heating: 30 min.
    • Gelatinisation and liquefaction: 30 min.
    • Cooling to saccharification temperature: 25 min.
    • Saccharification 30 min.
    • Separation of solids: 85 min.
    steinecker

    Optimal hydrolysis results: use of the technology in Steinecker mash vessels

    00 - Article 28253

    4. Separation of solids and liquids and blending of additives

    Separation of solids and liquids
    After hydrolysis, the oat-water mixture first goes into a decanter that has to be additionally installed, in which the solids are separated from the liquids.

    Blending
    In the following process, the oat base is blended with various additives such as oil, salt, flavourings, stabilisers and possibly sugar, depending on the recipe, to form the finished beverage. The configuration can be individually adjusted to suit your requirements.

    5. Product treatment

    Krones VarioAsept M UHT system

    • Specifically designed for use in the milk industry and thus in an ideal position to cater to the requirements of plant-based milk alternatives: At the end, reliably inactivates the enzymes needed for hydrolysis
    • Output range: Between 3,500 and 60,000 litres per hour
    • Proven design which
      • meets the highest hygiene requirements
      • Is extremely gentle on the product
    • In-house laboratory for product analysis
    • Perfectly matched with the Krones aseptic fillers

    Homogeniser by HST

    Homogenization is an important process step in the manufacture of plant-based milk alternatives. The system is located in the sterile area, meaning that aseptic homogenization is therefore performed. This way, the agglomerates formed during heating (regardless of whether directly or indirectly) can be removed again, which ensures a high product quality.

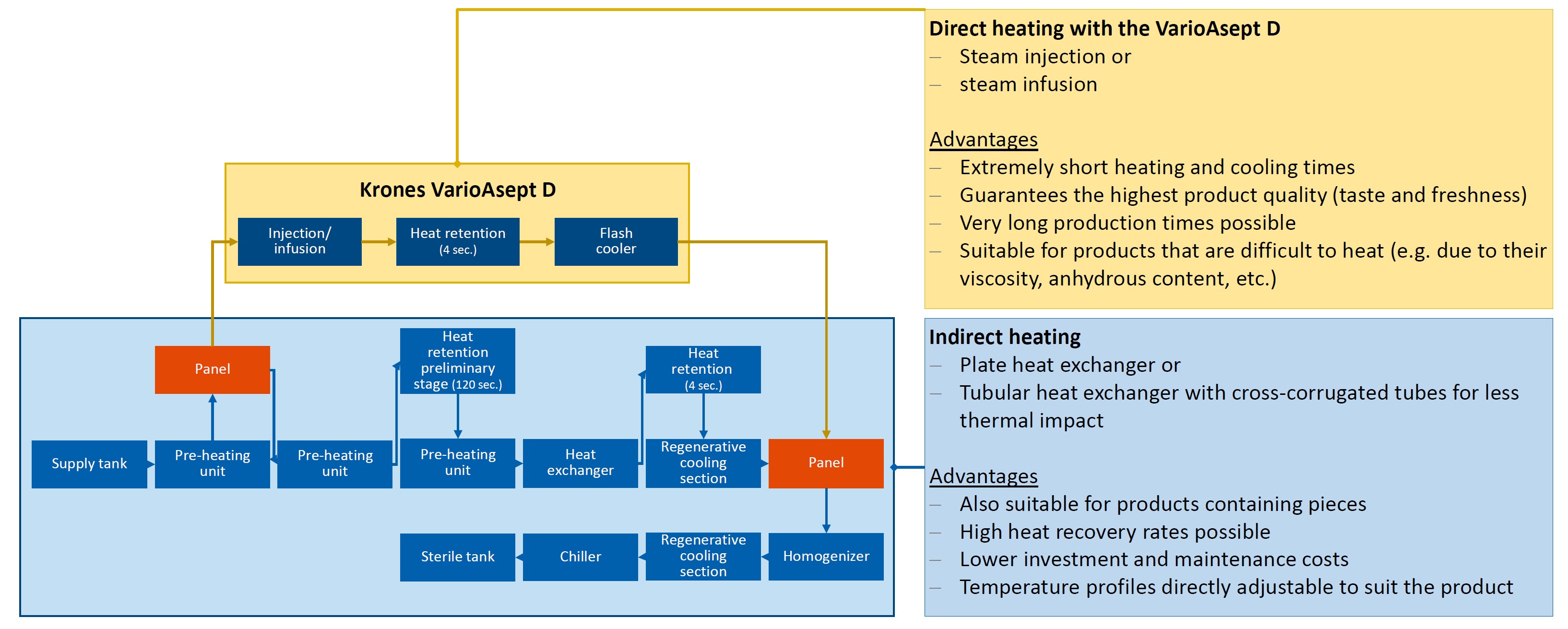

    6. Flexible heating options

    7. Aseptic filling systems

    • 10-Year sterility guarantee available
    • Automatic adjustment of the handling parts at speeds of up to 36,000 containers per hour

    Especially for slightly acidic and pH-neutral products: Contipure AseptBloc

    • FDA and 3A certificate available for the entire aseptic block arrangement
    • All of the components in the clean room housing block can be completely sterilised: The sterile preform or container never leaves the sterile zone until it reaches the capper
    • Up to 168 hours of continuous production in one go
    • Output: up to 72,000 containers per hour

    Process components

    Evoguard valves and pumps – high-performance technology all along the line
    Evoguard

    The holistic expertise of Krones process technology

    • Whether it's a single product or a complete solution, and no matter where in the world your company is located - within the Krones Group, you'll find the right process technology solutions for plant-based milk alternatives.
