All-rounder for packing and unpacking
High output and flexibility are key qualifications
The packing and unpacking process in a beverage plant must run like clockwork. Fast and gentle container handling and high flexibility to suit a wide variety of containers are the basic pre-requisites. On top of that, a packing and unpacking machine should be easily integrated into operational sequences and smoothly fit into the line layout. The Linapac II fully meets these requirements.
Last but not least: Empties sorting systems, as well, benefit from its high-performance technology.
At a glance
- Intermittent packer for
- cylindrical and specially shaped containers made of glass or plastic
- multi packs
- Processing of pack block lengths ranging from 1,600 to 3,315 millimetres
- For packing and unpacking of packs which are open at top side
- Integration in empties sorting systems
Method of operation
Packers operating in cycles for flexible mastering of packing and unpacking tasks
Packing
- The bottles on the container table are grouped onto lanes
- The pre-positioned containers are picked up using gripper units and set into the fed empty packs
Unpacking
- The filled packs are fed to the unloading position on the conveyor
- Gripper unit lowering and container pick-up from the pack, and container positioning on the container table
Packing curve
- Freely programmable packing curve with independent control of the drives of lifting column and horizontal axis
- Various positions can be approached within the operating range
- Precision control system to ensure accuracy of movement to the nearest millimetre as well as gentle start-up and braking
Technical features
Various sizes allow an optimum integration of the Linapac II in many different line layouts. The models vary regarding the container table width and pack conveyor length, which makes the Linapac II a perfect partner for individual packing processes.

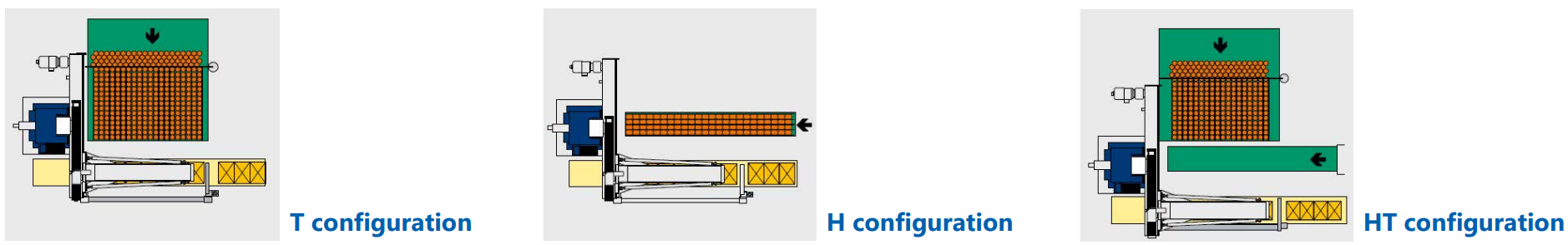

Layout configuration
- T design for cylindrical containers
- H design for cylindrical containers and multipacks
- HT design for cylindrical containers or multipacks as an option
Benefits to you
Flexible application
The versatile Linapac II can be used for both packing and unpacking containers. It can also handle combined packing and unpacking as well as sorting tasks with ease.
High operational reliability
The robust design of all units and components ensures safe, trouble-free operation of the packer.
Low space requirements
Thanks to its small dimensions, the Linapac II has room even on small surfaces. The handling parts can also be stored in the shelf magazine at higher positions to save space.
Large processing range
The wide variety of gripper units available means many different container types can be processed both gently and safely.
Quick change-over
Due to the high degree of automation, it is possible to change over to other formats with just minor operator intervention. As an option, the packer can be equipped for fully automatic handling parts change-over.
